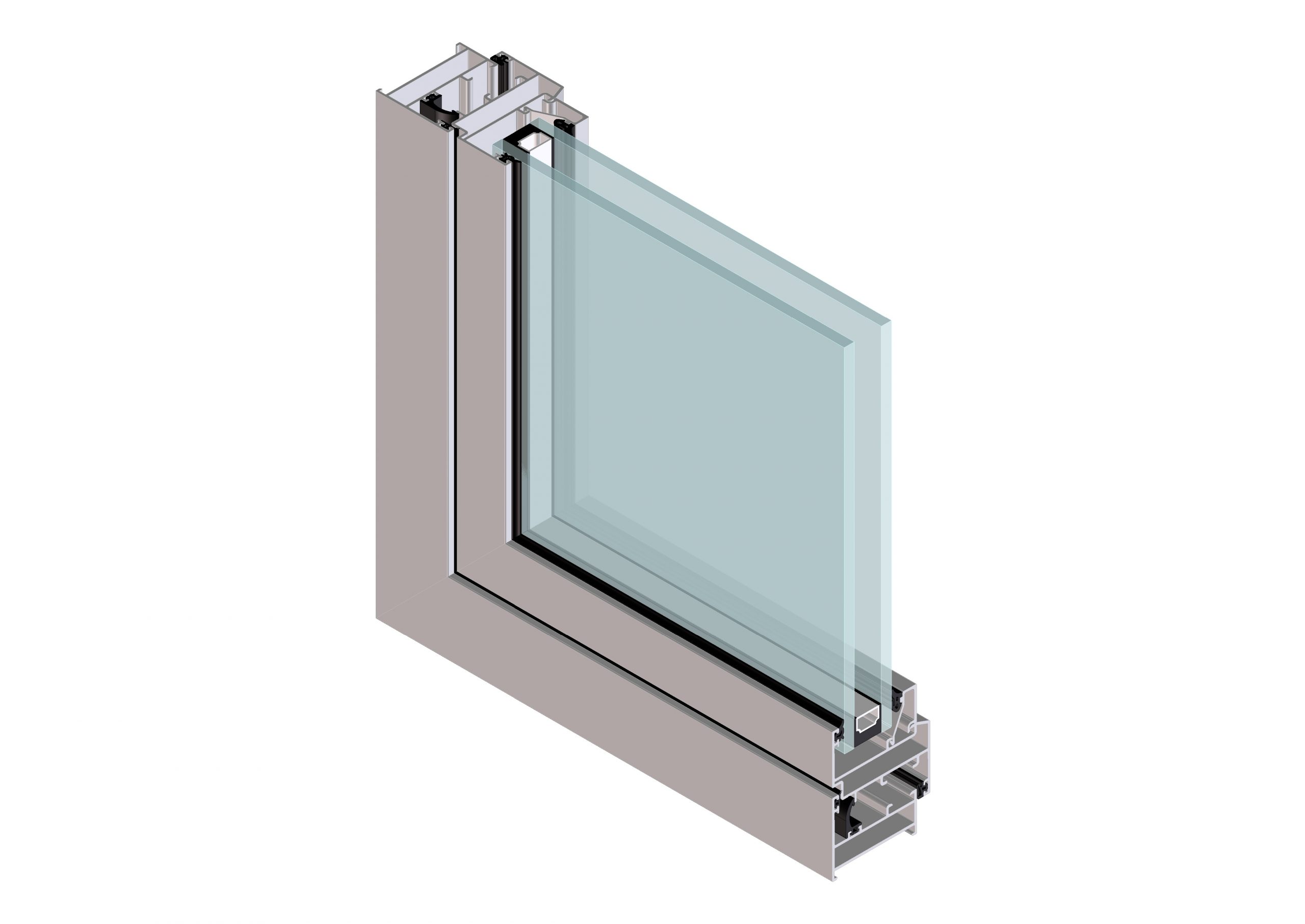

Our cost effective EFP 50 Window System  is a fully drained & pressure equalized system, open in or open out, glazed from inside or outside. Frames, transoms/mullions from 23mm up to 45mm and vents from 23 mm up to 58mm within our standard range.

Various window types can be constructed. Like fixed lights, side-top and bottom hung with butt hinges or friction hinges/stays. Double casement (French windows) open in or open out, vertically and horizontally pivoting windows etc are available within this system.

Some highlights and unique points:

• fully drained & pressure equalized.
• euro groove for unrestricted choice of hardware.
• frame + vent same glazing depth (55mm).
• glazing thickness from 4 up to 36mm.
• vent width up to 1600mm
• vent height up to 2400mm

Classifications

Air permeability:      Tested pending
Water tightness        Tested pending
Wind resistance        Tested pending
         (2000 Pa design-3000 Pa safety)

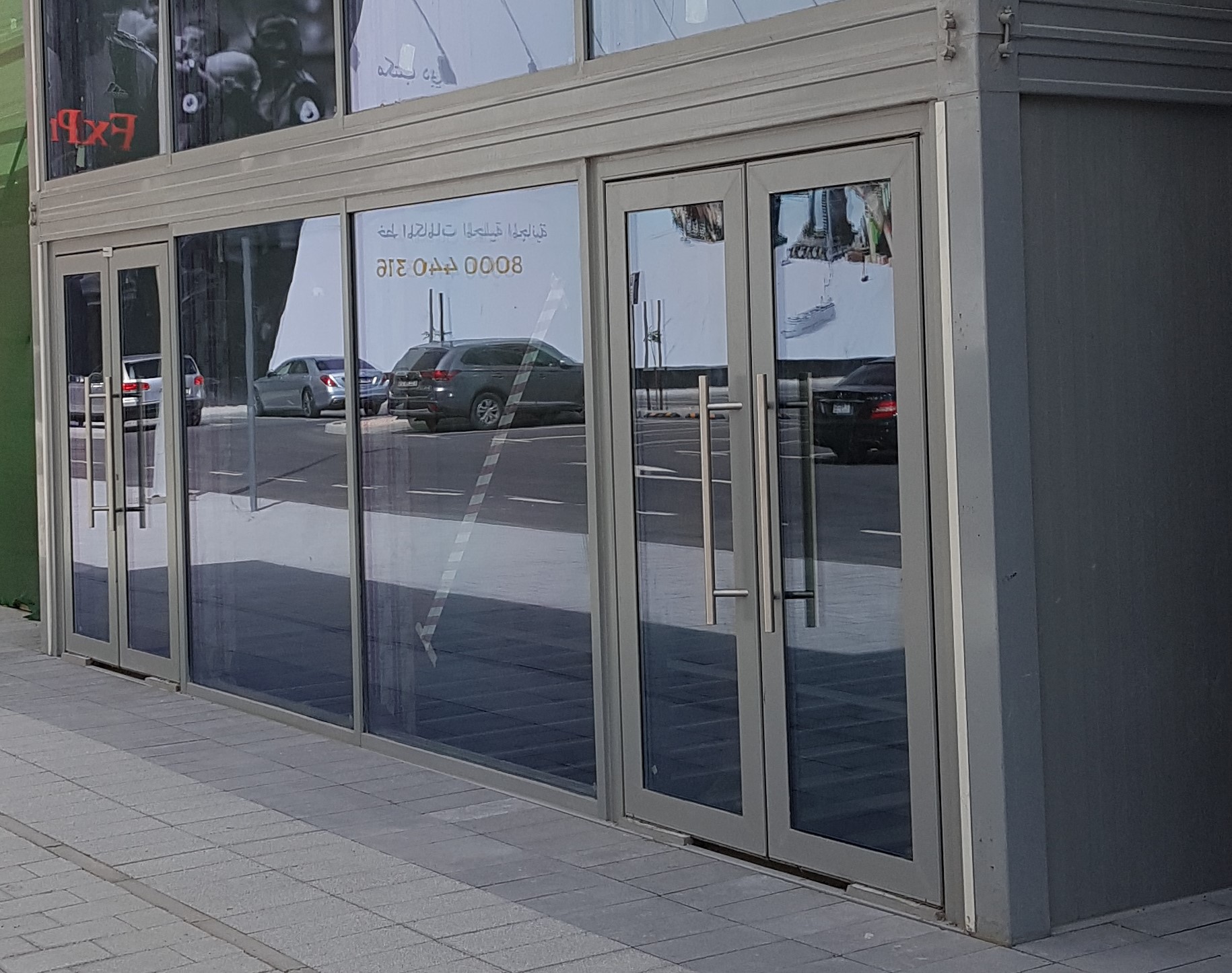

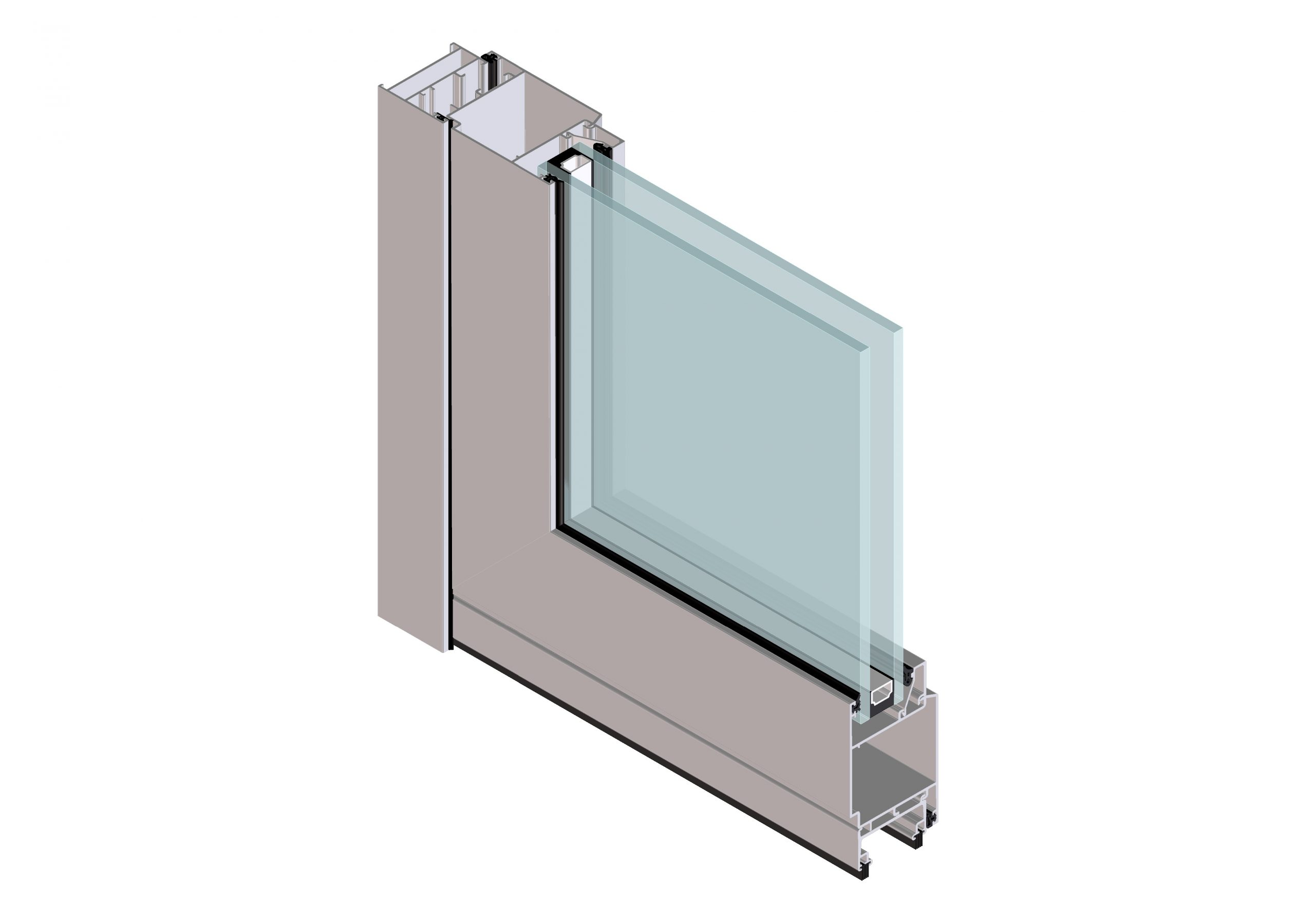

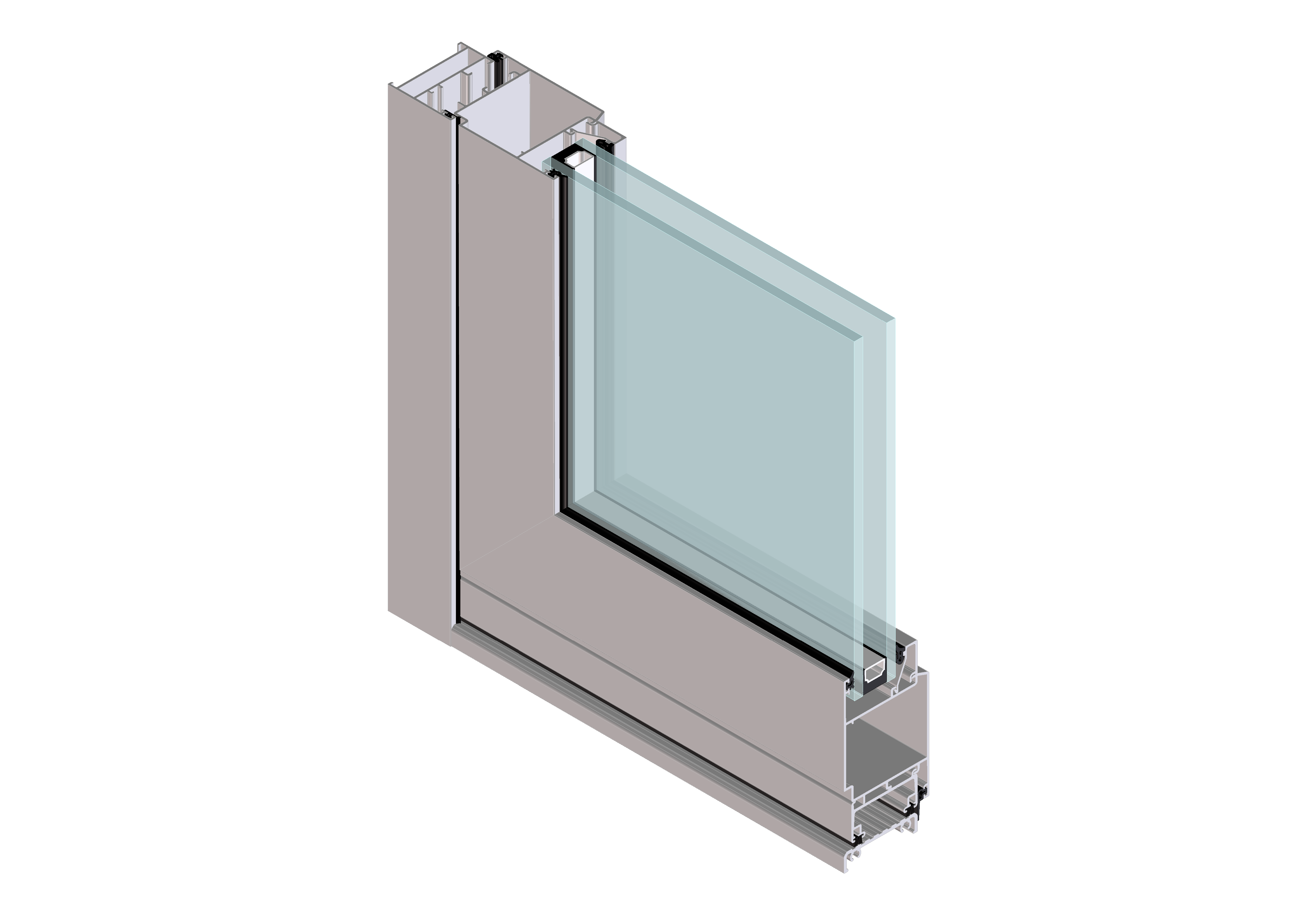

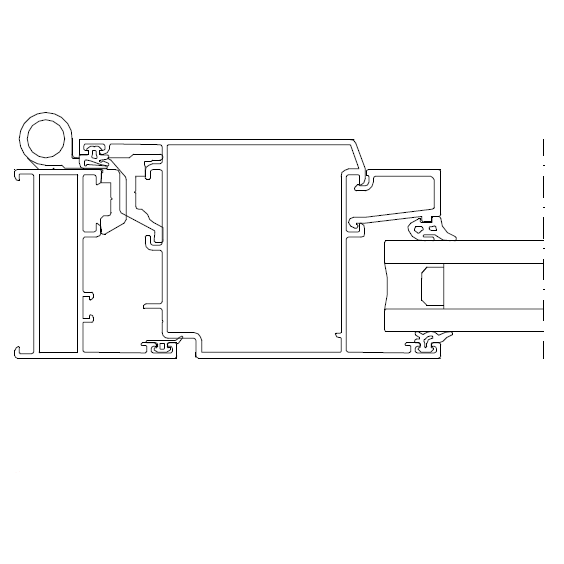

Our cost effective EFP 50 Door Systems is a fully drained & pressure equalized system, open in or open out, glazed from inside or outside. Frames, transoms/mullions from 23mm up to 45mm and vents from 23 mm up to 58mm within our standard range.

Various door types can be constructed. Like single or double hinged doors. Available with or without threshold.

Some highlights and unique points:

• fully drained & pressure equalized.
• euro groove for unrestricted choice of hardware.
• frame + vent same glazing depth
• glazing thickness from 4 up to 36mm.
• door height up to 2800mm

Classifications

Air permeability:      Tested pending
Water tightness        Tested pending
Wind resistance        Tested pending
         (2000 Pa design-3000 Pa safety)

References

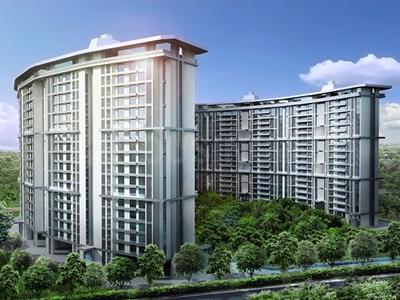

YOO, Pune India
