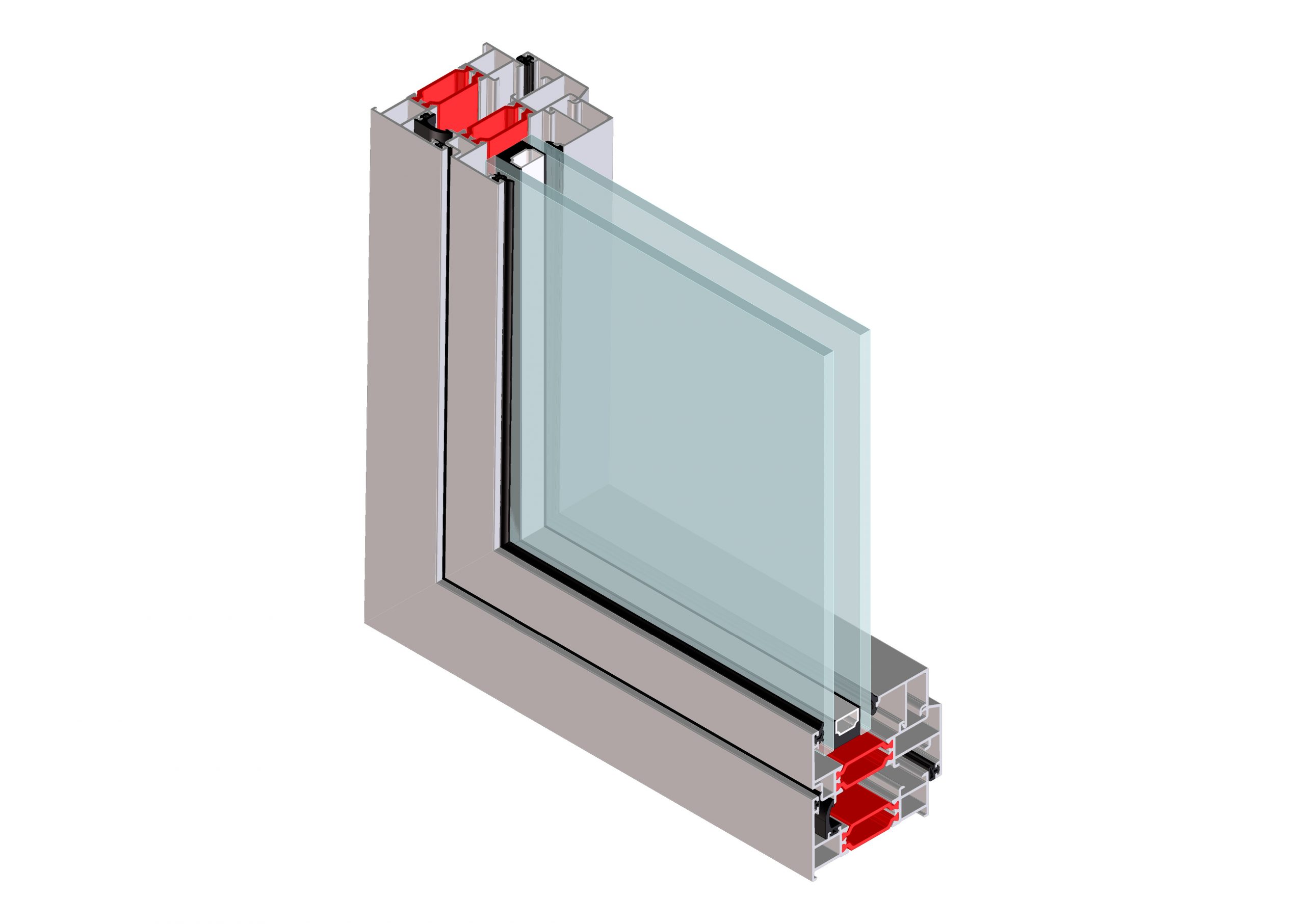

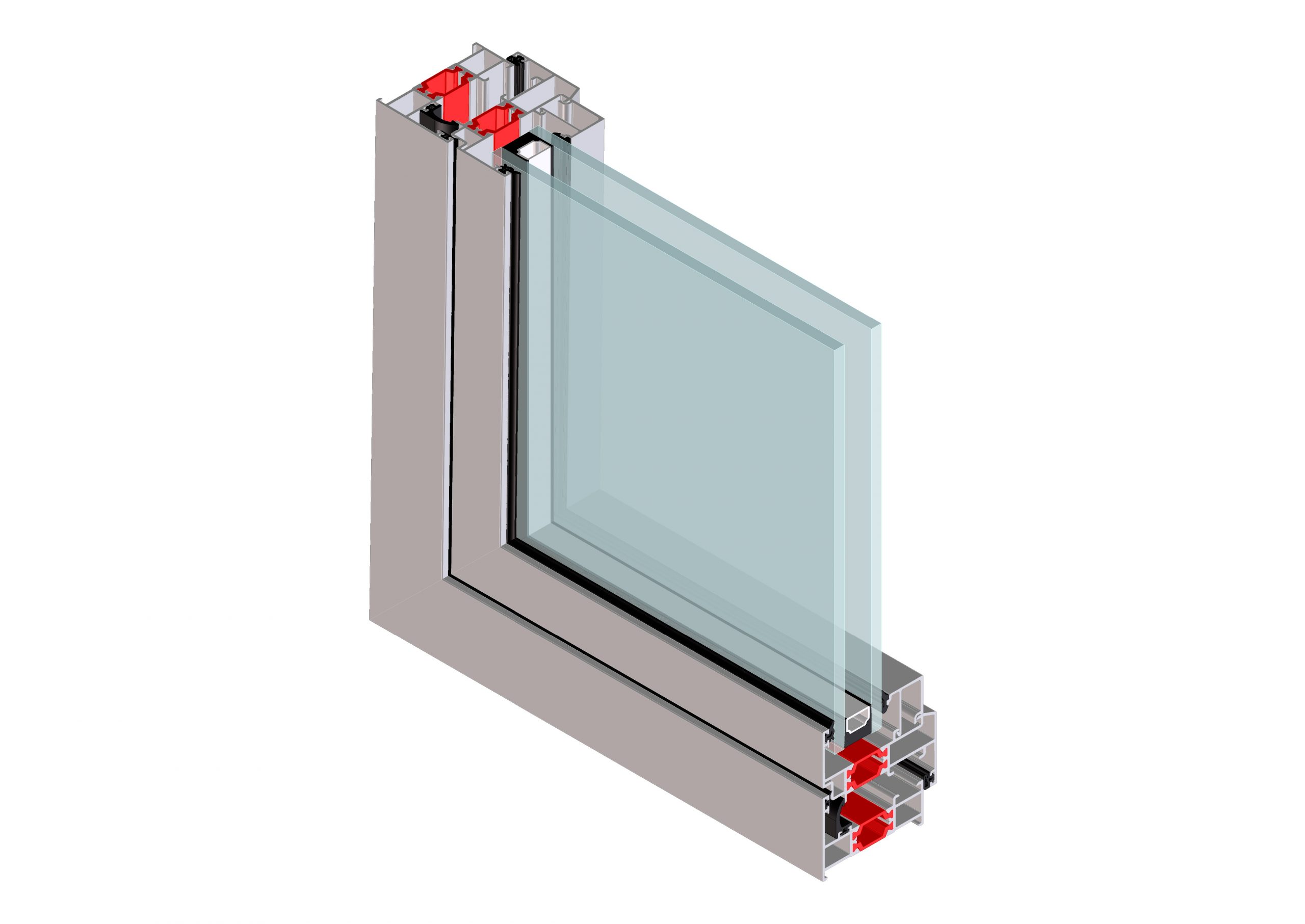

EFP 50tb/60tb/70tb window systems

Our cost effective thermally broken Window System  is a fully drained & pressure equalized system, open in or open out, glazed from inside or outside. Frames, transoms/mullions from 23mm up to 45mm and vents from 23 mm up to 58mm within our standard range.

Various window types can be constructed. Like fixed lights, side-top and bottom hung with butt hinges or friction hinges/stays. Double casement (French windows) open in or open out, vertically and horizontally pivoting windows etc are available within this system.

Some highlights and unique points:

  • fully drained & pressure equalized.
  • euro groove for unrestricted choice of hardware.
  • frame and vent with equal glazing depth within each system
  • glazing thickness:     50tb from4 up to 36mm.
                                              60tb from 9 up to 46mm.
                                              70tb from 19 up to 56mm.
  • vent width up to 1600mm
  • vent height up to 2400mm
  • Uf values up to 2.48 W/m2K

Classifications

Air permeability:       test pending
Water tightness:        test pending
Wind resistance:        test pending

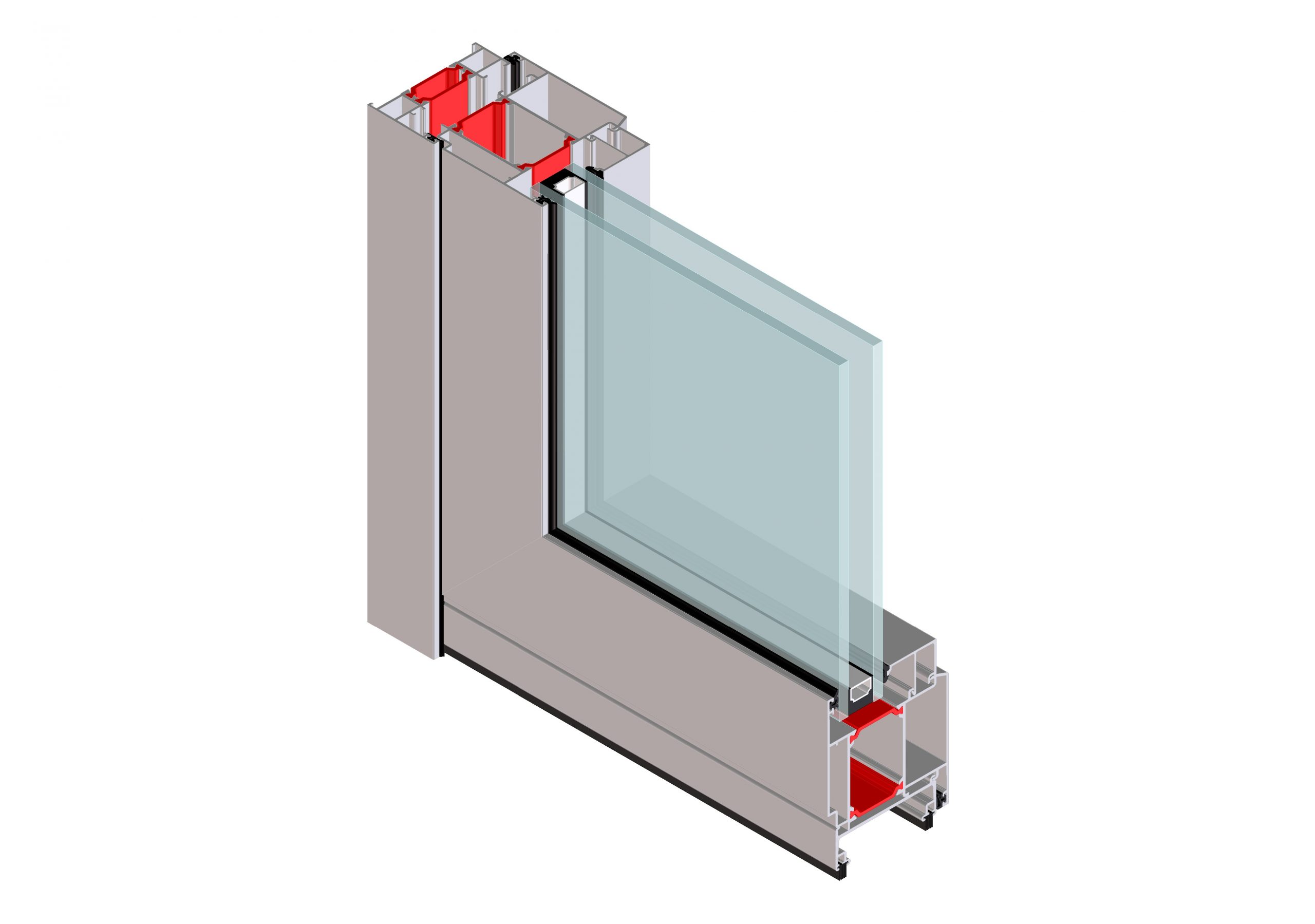

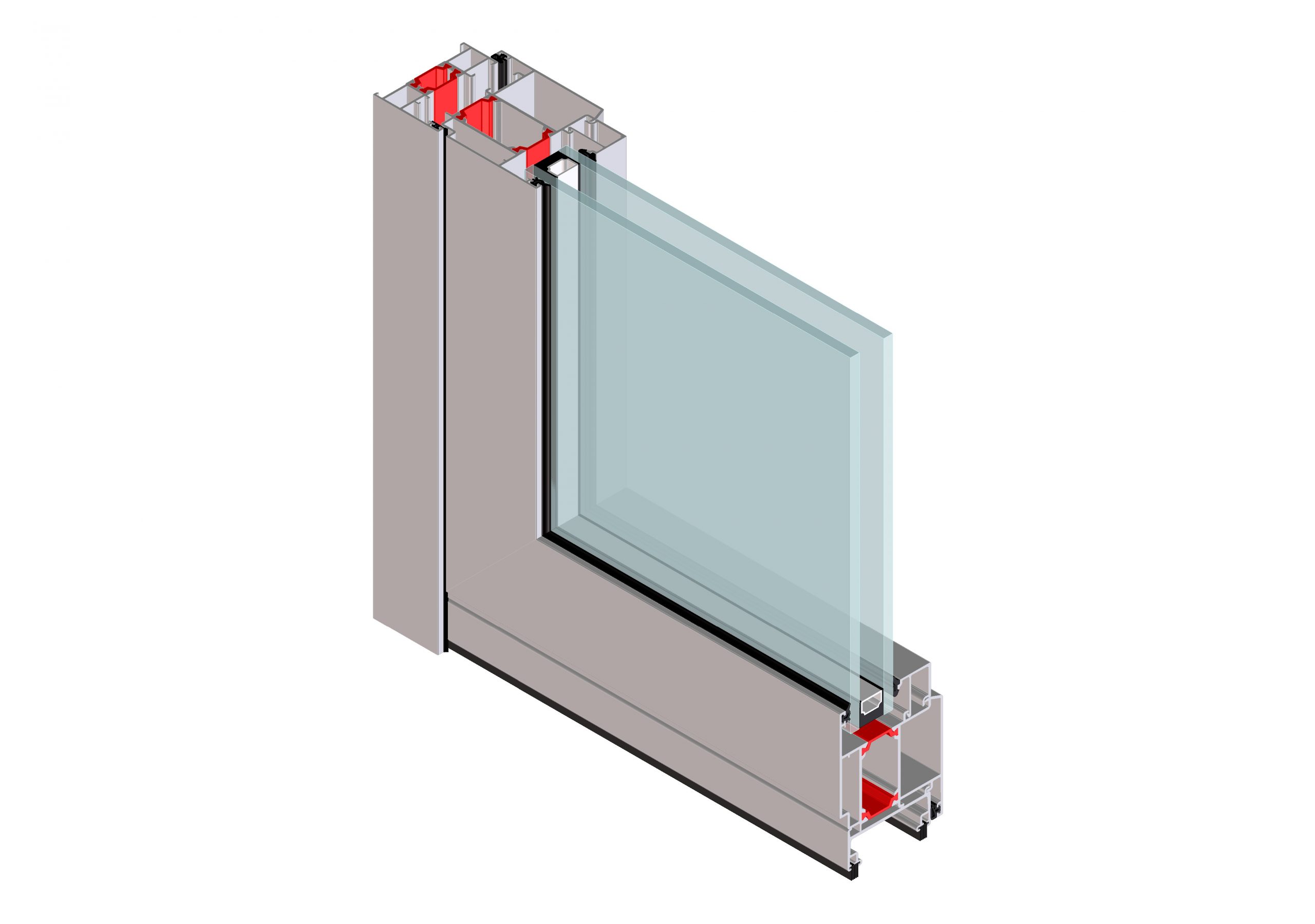

EFP 50tb/60tb/70tb door systems

Our cost effective thermally Door Systems is a fully drained & pressure equalized system, open in or open out, glazed from inside or outside. Frames, transoms/mullions from 23mm up to 45mm and vents from 23 mm up to 58mm within our standard range.

Various door types can be constructed. Like single or double hinged doors. Available with or without threshold.

Some highlights and unique points:

  • fully drained & pressure equalized.
  • euro groove for unrestricted choice of hardware.
  • frame and vent with equal glazing depth within each system
  • glazing thickness:    50tb from4 up to 36mm.
                                             60 tb from 9 up to 46mm.
                                             70tb from 19 up to 56mm.
  • Uf value till 3.00 W/m2K
  • door height up to 2600mm

Classifications

Air permeability:       test pending
Water tightness:        test pending
Wind resistance:        test pending

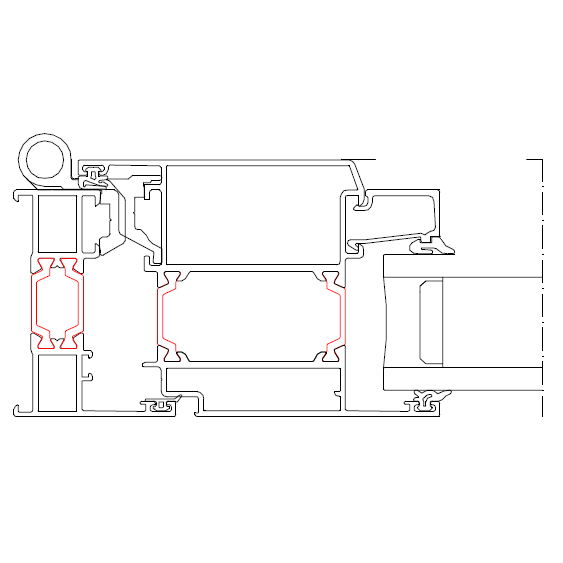

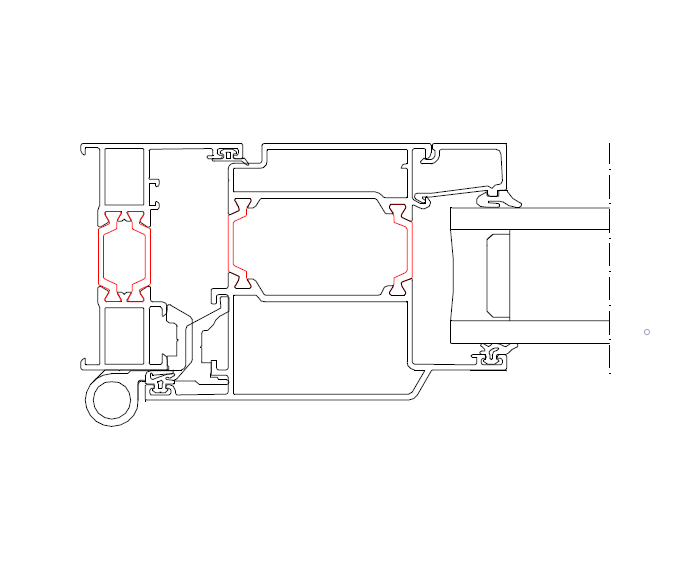

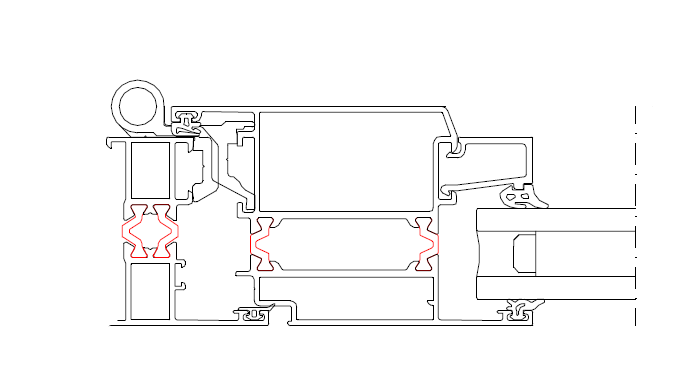

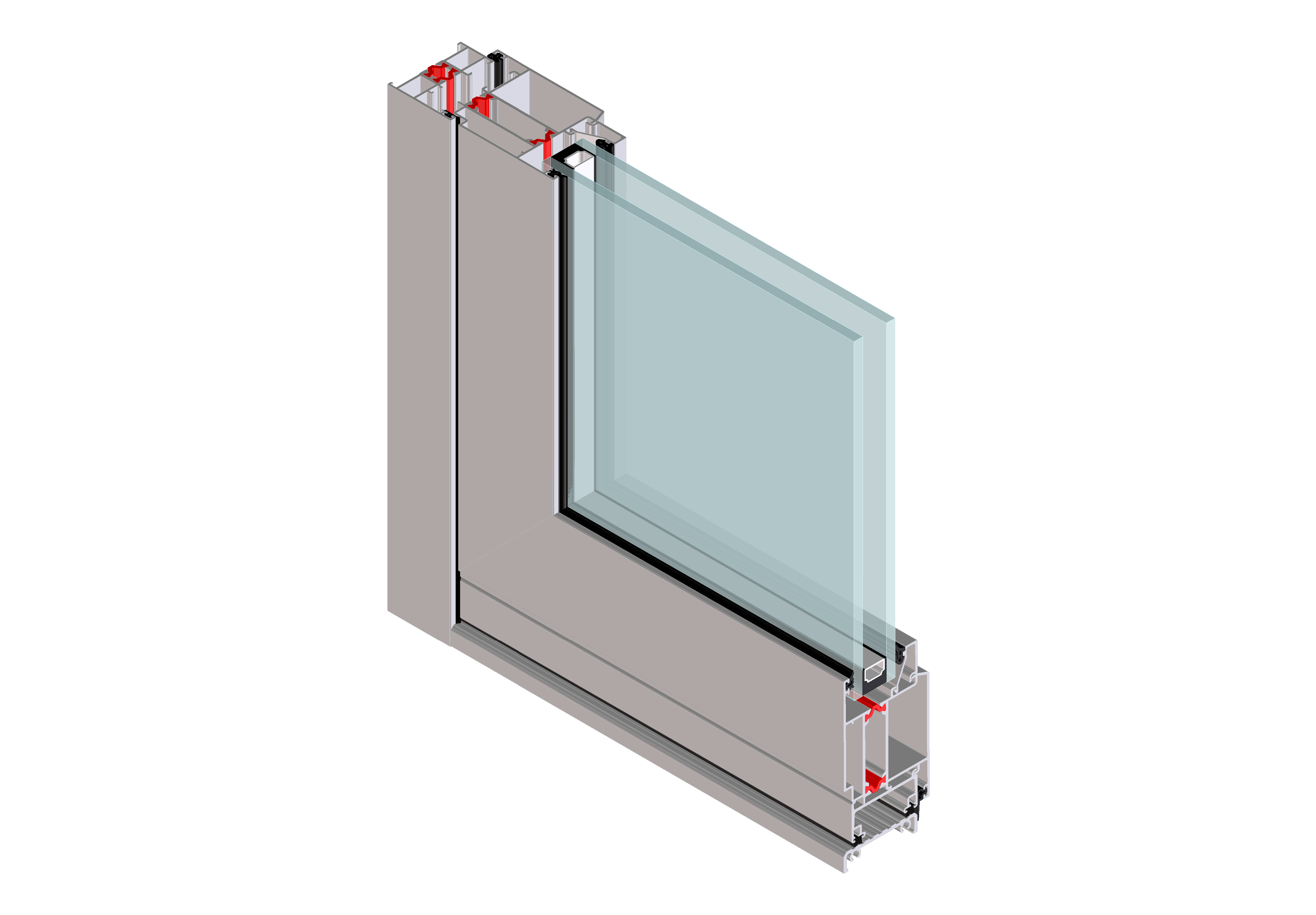

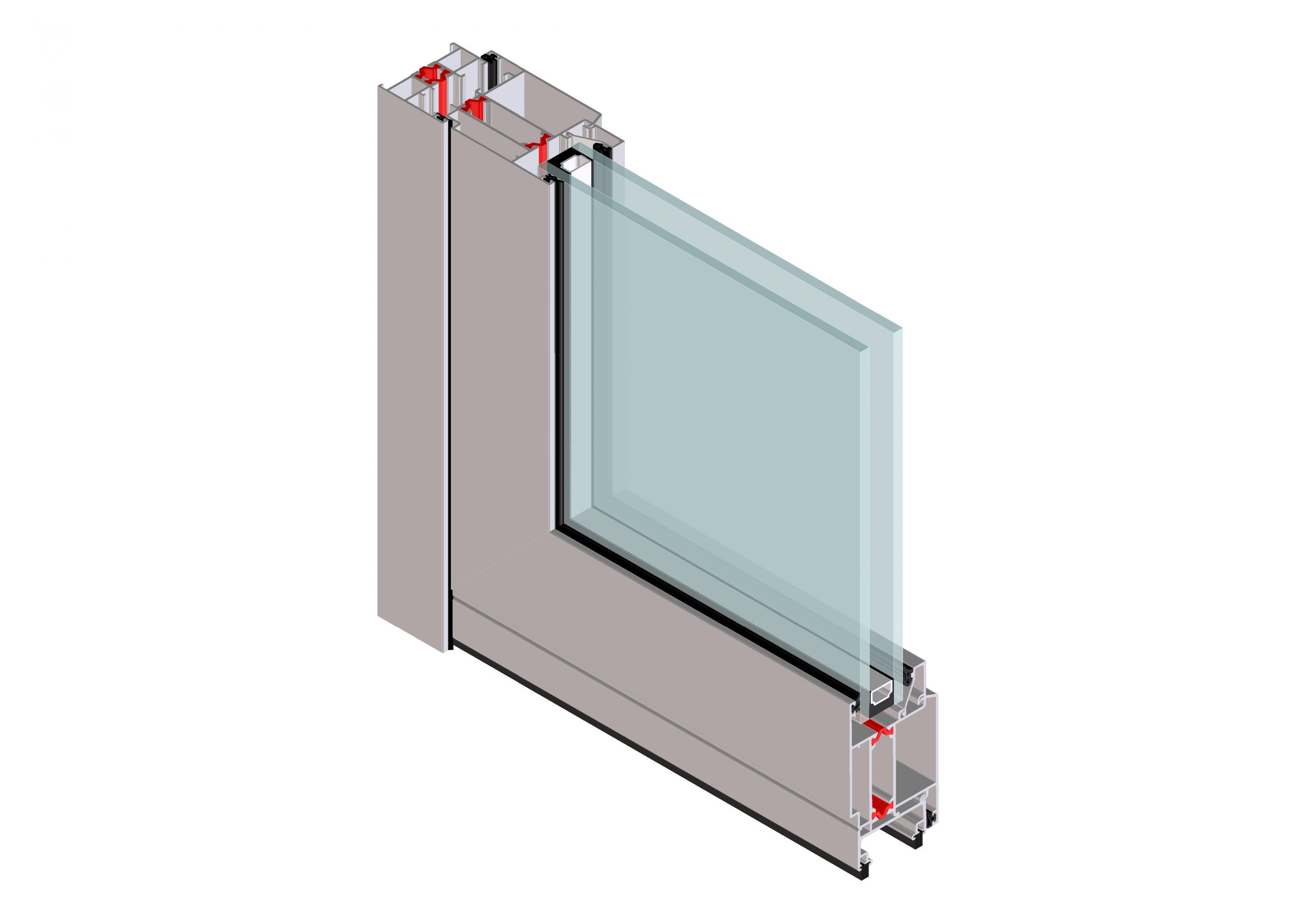

Cross section

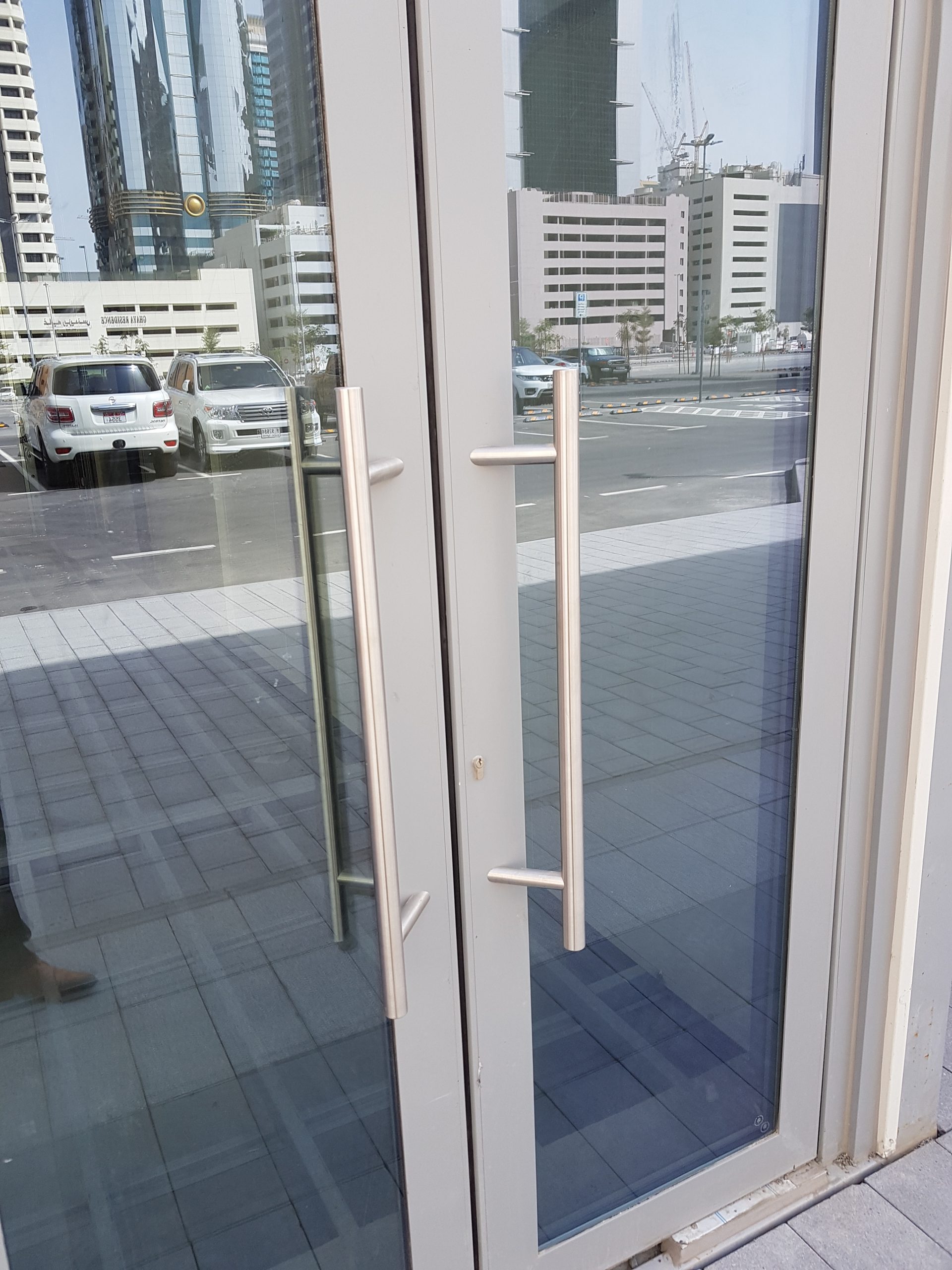

References

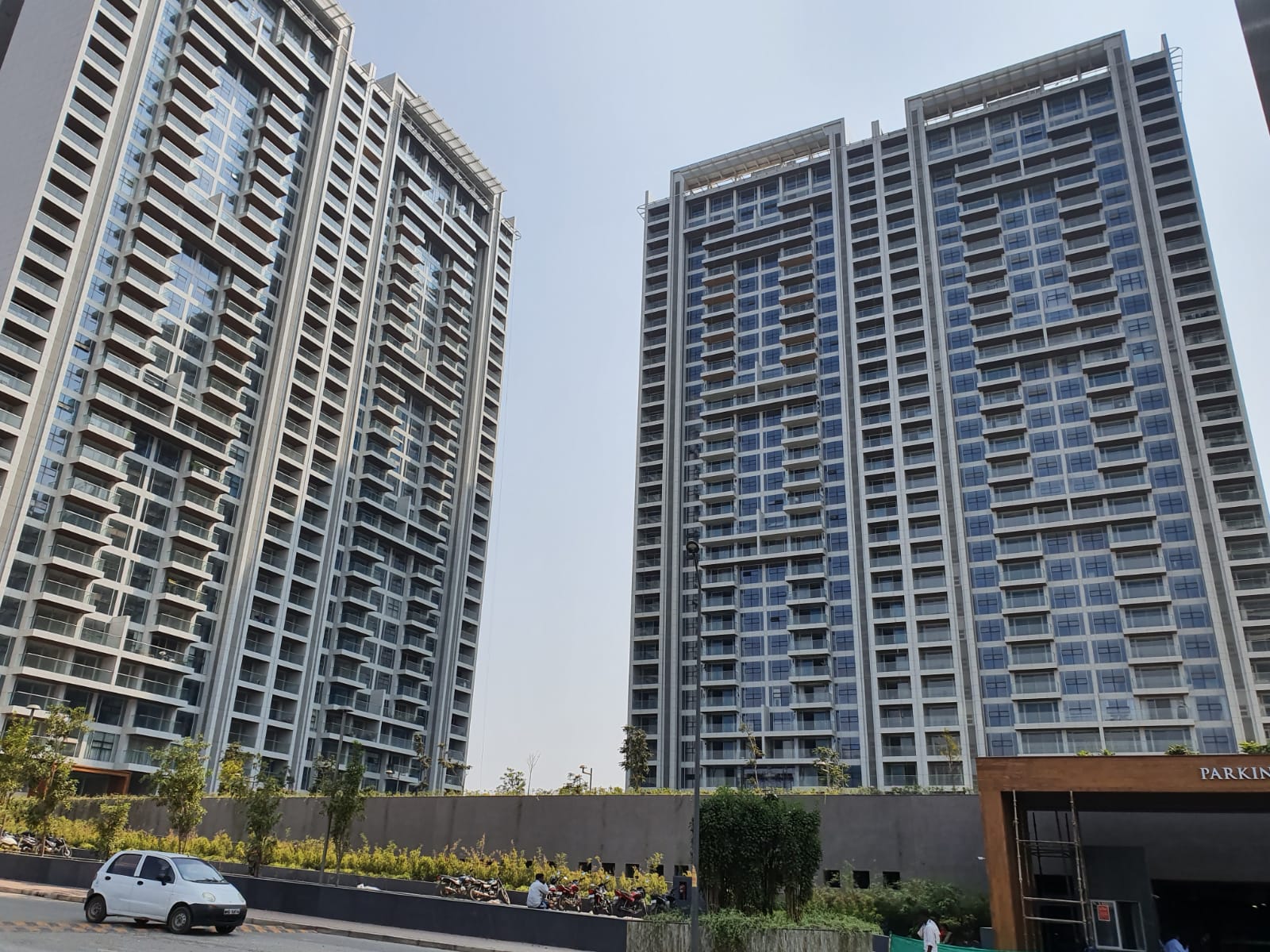

Wagholi Residential Towers Pune
